How to Choose the Right Brazed Diamond Grinding Tools: A Practical Guide for Ultra-Hard Material Processing

Choosing the Right Brazed Diamond Grinding Tools for Ultra-Hard Material Processing

In the realm of ultra-hard material machining, brazed diamond grinding tools have established themselves as indispensable assets. Their unparalleled durability and efficiency make them the preferred choice for industries tackling materials such as gray cast iron, ductile iron, stainless steel, and ceramics. This guide dives deep into the technical nuances and practical considerations when selecting brazed diamond grinding tools, aiming to elevate your machining efficacy and tool longevity.

Understanding Brazed Diamond Grinding Tools and Their Structure

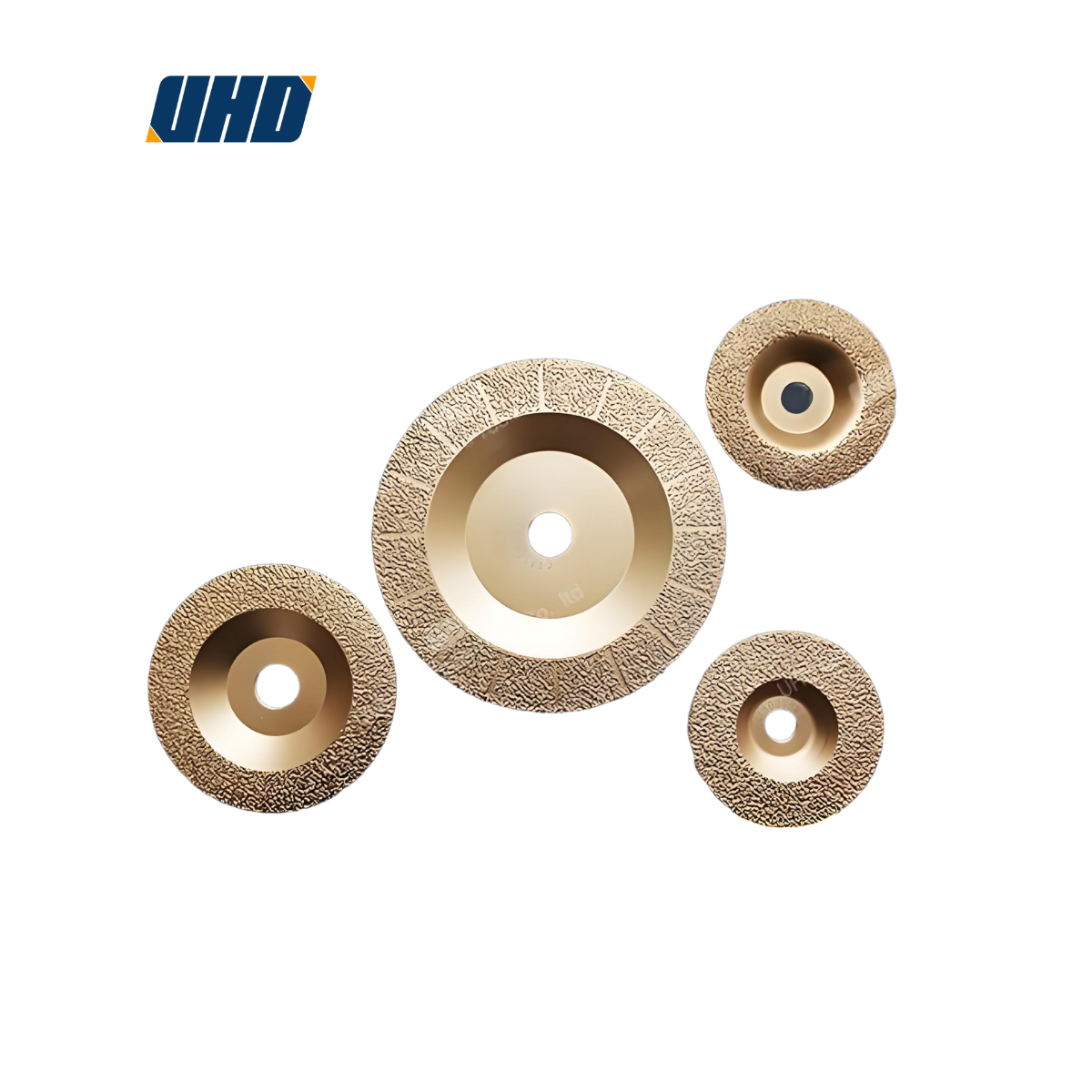

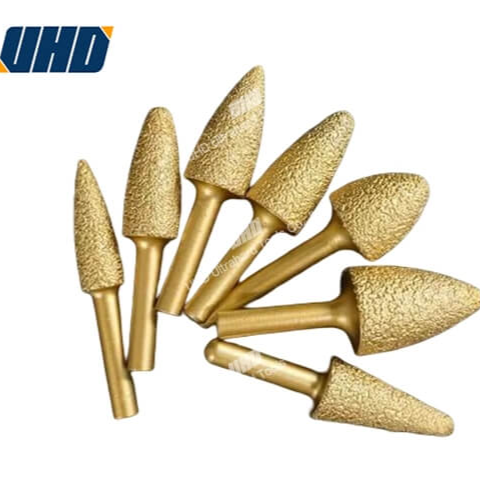

At the core, brazed diamond grinding tools consist of industrial-grade diamond particles securely bonded onto a metal substrate using specialized brazing techniques. This method forms a robust metallic bond, optimizing the exposure of diamond abrasives while drastically improving the tool's wear resistance. Compared to electroplated or resin-bonded counterparts, brazed tools offer superior thermal conductivity and mechanical stability, essential for maintaining precision during high-speed grinding operations.

Selecting Tools Based on Material Compatibility

Different substrate materials impose distinct demands on grinding tools. For example:

• Gray Cast Iron: Requires tools with medium diamond grit and a slightly softer metal bond to avoid excessive tool wear while ensuring surface finish quality.
• Ductile (Nodular) Cast Iron: Benefits from finer diamond grains combined with a harder bond to handle its tougher matrix and abrasive inclusions.
• Stainless Steel: High ductility demands brazed tools with higher diamond concentration and enhanced thermal resistance to prevent clogging and promote consistent grinding.
• Ceramics and Carbides: Call for ultra-fine diamond grains and robust bonds to adhere to the brittle but hard nature of these materials, maximizing precision.

Practical Considerations for Tool Model and Size Selection

When choosing brazed diamond tools, consider the following parameters aligned with your processing requirements:

• Tool Diameter: Larger diameters increase contact area allowing faster stock removal; smaller sizes provide precision for intricate workpieces.
• Diamond Grit Size: Coarser grits expedite material removal but can degrade surface finish; finer grits enhance finish at the cost of slower removal rates.
• Bond Hardness: Softer bonds expose abrasive grains quicker, suitable for hard materials where fresh cutting is needed; harder bonds retain diamonds longer for softer materials.
• Speed Ratings: Ensure tools match or exceed machine spindle RPM to maintain safety and maximize performance.

Leveraging these criteria ensures optimized grinding cycles, cutting down cycle times by up to 15% and extending tool service life by 20%-30%.

Case Study Insights: Enhancing Machining of Stainless Steel Components

In a recent industrial application, a manufacturing plant replaced traditional grinding tools with brazed diamond grinding wheels featuring a high diamond concentration (~90% by volume) and a medium-hard bond. This switch resulted in a 25% reduction in grinding wheel change frequency and improved surface finish quality by 15%, decreasing post-processing requirements.

Proper coolant selection and maintaining spindle speeds within recommended thresholds (commonly 25-40 m/s peripheral speed) were key factors in achieving these gains.

Maximizing Value with Henan Youde Superhard Tools Co., Ltd.

Henan Youde Superhard Tools Co., Ltd. stands out by offering precision-engineered brazed diamond grinding tools tailored for various ultra-hard material applications. Their commitment to quality is demonstrated through rigorous brazing processes and customizable tool specifications aligned with client needs. Partnering with such an expert supplier ensures not only access to high-performance tools but also professional support that helps optimize your grinding operations.

For manufacturers aiming to reduce downtime and maximize processing precision, exploring Youde's extensive product range will prove invaluable.
